Screw conveyors are an essential part of many conveying and storage systems.  They provide a cost-effective, versatile conveying capability due to simple and robust in design. We supply screw conveyors for the broadest range of industrial applications.
Screw conveyor is most suitable for transporting all kinds of powder, granular materials, lumpish materials, such as coal, sand, lump coal, cemnet, cereal, etc. Perishable, viscous, easy caking materials are not available to transport.

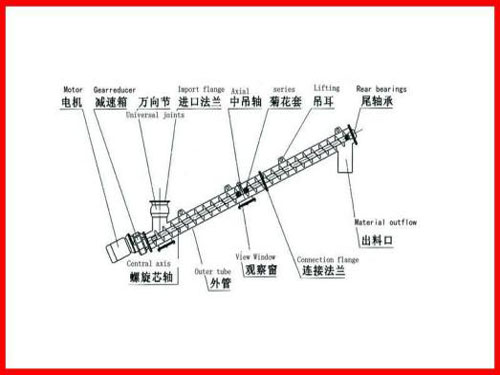

Structure of helical conveyor screw conveyor:

Screw conveyors or auger conveyors usually consist of a trough or tube containing either a spiral blade coiled around a shaft, driven at one end and held at the other, or a "shaftless spiral", driven at one end and free at the other. The rate of volume transfer is proportional to the rotation rate of the shaft.

In industrial control applications the device is often used as a variable rate feeder by varying the rotation rate of the shaft to deliver a measured rate or quantity of material into a process.

Working principle of helical conveyor screw conveyor:

The material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.

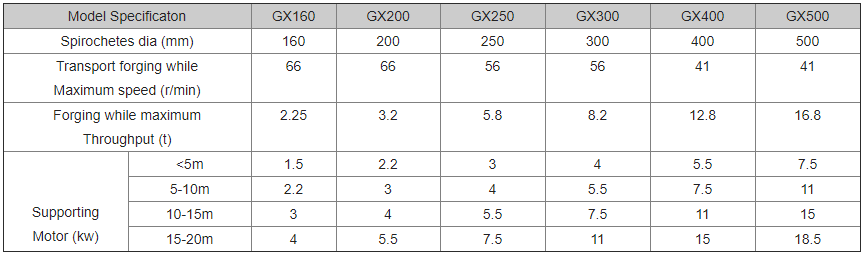

Main technical parameter:
