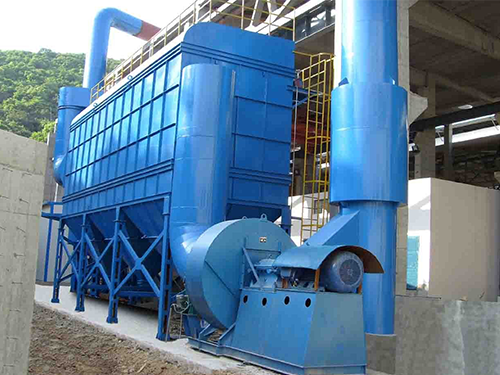

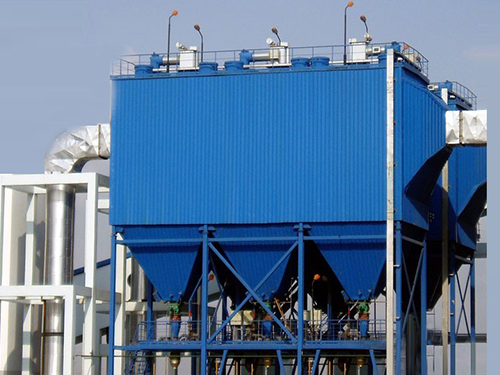

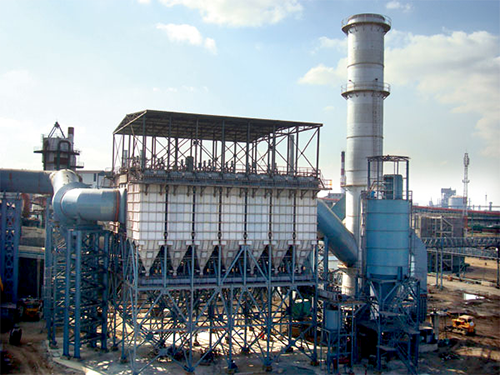

Pulse bag dust filter introduction:

Pulse bag dust filter is a small stand alone bag filter; it is designed by absorbing advantages of similar products at home and abroad. The filter uses products advanced online pulse injection technology with complete dust cleaning and low running resistance. And the high quality accessories can ensure the efficient of dust elimination. It's a full automatic control, high efficiency operation and easy maintenance .

Working Principle of Pulse bag dust filter:

Dusty gas goes in from the air intake of the dust catcher and into the ash bucket through the partition board, and at the same time the air flow slows down. Due to the inertia, the coarse particles in the gas will fall into the ash bucket, and the fine dust particles will go up along with the gas and into the filtering chamber. The powder dust will stick onto the surface of the filter bag, and the purified gas will go into the upper cleaning room through the filter bag and be sucked by the main air blower of the dust collecting system and discharged into the air.

Advantages of pulse bag dust filter:

1.Dust removal efficiency is high,generally over 99%,precipitator dust concentration of outlet gas in dozens of 50mg/m³,the fine dust of submicron particle size high classification efficiency.

2.Simple structure,convenient maintenance operations.

3.Under the premise of guarantee same high dust removal efficiency,cost is lower than the electric dust catcher.

4.Using glass fiber,the high temperature resistant filter materials such as ptfe,P84,can run under the condition of high temperature above 200℃.

5.Is not sensitive to the characteristics of dust from dust and influence of the resistance.
