Ore Processing Machine

Energy Saving Rod Mill

Rod Mill--bar Mill Application: Rod mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency, they m...

Leave Message Chat Online

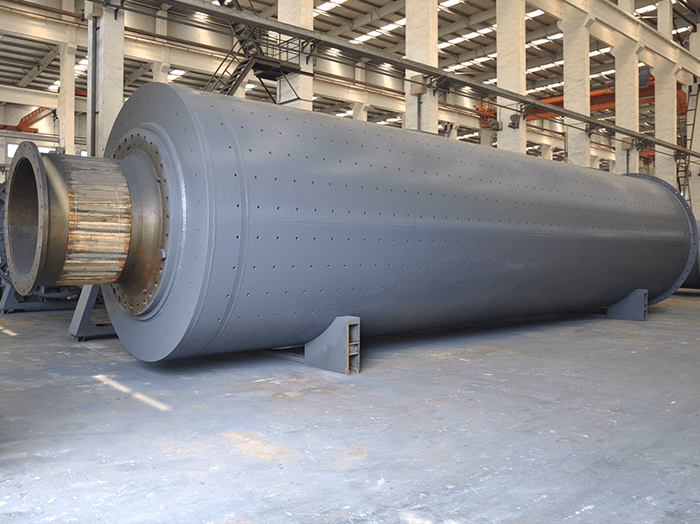

Energy Saving Rod Mill

Rod Mill--bar Mill Application:

Rod mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. It is widely used in building material,ceramic raw material, chemical industry, etc,can be used both dry and wet.

Name:	Energy Saving Rod Mill	Efficiency Volume (m3):	5.0-50
Discharge Size (mm):	2.5-0.2 / 5-0.8	Balls Weight (t):	2.3-94
Control System:	PLC Computer	Weight (t):	6.2-192
High Light:	Mineral Rod Ball Mill , 100tph Rod Ball Mill , 100tph Mineral Rod Ball

Rod mill is applied to metal and nonmetal mine, water conservancy and glass building materials for grinding various ore, rock and artificial sand which needs even product granularity. The energy-efficient rod mill that our company produces is all that rolling bearing support instead of bearing bush slip bearing support. It will save 10-20% energy compared with slip bearing support and improve production capacity by 10-20%……
This machine can triturate or grind all kinds of hard grade of ore and other material by wet way. Particularly applicable to adjustment fineness module in the process of making sand.

Model	Cylinder Size (mm) Dia*Length	Efficiency Volume (m3)	Balls Weight (t)	Rotary Speed (r/min)	Power (kw)	Discharge Size (mm)	Capacity (t/h)	Weight (t)
MB1908	Φ900*1800		2.3	29	22	2.5-0.2	6-1.6	6.2
MB0924	Φ900*2400		3.1	29	30	2.5-0.2	10-2.9	6.6
MB1224	Φ1200*2400		6.5	27	55	2.5-0.2	13-5	13.5
MB1530	Φ1500*3000	5.0	8	23	75	2.5-0.2	12-5.5	16.71
MB1830	Φ1800*3000	6.5	17	22.8	132	2.5-0.2	20-9.5	29.8
MB2122	Φ2100*2200	6.7	18	20.9	160	2.5-0.2	27-12	42.5
MB2130	Φ2100*3000	9.2	25	20.9	160	2.5-0.2	30-13	43.9
MB2136	Φ2100*3600	11.0	28	20.9	200	2.5-0.2	35-14.8	49.4
MBZ2136	Φ2100*3600	11.0	32.5	20.9	210	-5.0	61.5-43	49.9
MB2140	Φ2100*4000	12.2	31	20.9	220	2.5-0.2	38-17	50.3
MB2145	Φ2100*4500	13.8	35	20.9	250	2.5-0.2	43-19	51.8
MB2430	Φ2400*3000	12.2	31	19	250	2.5-0.2	47-22	56.0
MBZ2430	Φ2400*3000	12.2	31	19	250	-5.0	73-52	58.3
MB2436	Φ2400*3600	14.6	37	19	280	2.5-0.2	55-26	61
MBZ2436	Φ2400*3600	14.6	37	19	280	-5.0	84-60	62.4
MB2730	Φ2700*3000	15.3	35	17.5	315	5-0.8	125-37.5	75.6
MB2736	Φ2700*3600	18.4	42	17.5	355	5-0.8	150-45	81.8
MB2740	Φ2700*4000	20.5	47	17.5	400	5-0.8	165-50	84.3
MB3040	Φ3000*4000	25.9	50	16.2	500	5-0.8	206-62	130
MB3245	Φ3200*4500	33	56	15.5	630	5-0.8	228-70	138
MB3248	Φ3200*4800	34	60	15.5	710	5-0.8	240-74	142
MB3645	Φ3600*4500	40.8	78	14.5	800	5-0.8	270-83	168
Mb3654	Φ3600*5400	50	94	14.5	1000	5-0.8	340-103	192

Energy-saving rod mill

The energy-efficient rod mill that our company produces is all that rolling bearing support instead of bearing bush slip bearing support. It will save 10-20% energy compared with slip bearing support and improve production capacity by 10-20%. It uses grease replacing dilute oil lubricating station. The grinding mill does not need allocate high price high or low pressure lubricating station. The grinding mill with diameter above 2700mm can adopt high pressure electrical machinery, pneumatic clutch, big gear oil spray lubricating and slow speed driving device for maintain.

Rod mill Features:
High-efficiency
Energy saving
High quality ISO9001-2000,Big capacity
Professinal Manufaturer
Crushing kinds of ores with different grades
epigranular sand size adjustable
