Ore Processing Machine

Classiﬁer

Product Introduction：The Classiﬁer is a new type of classiﬁer independently R&D by Zhongke Machinery with simple structure...

Leave Message Chat Online

Classiﬁer

Product Introduction：

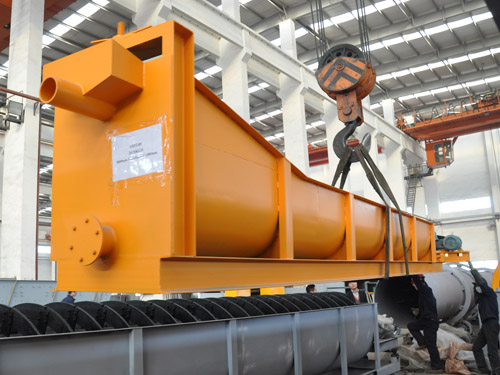

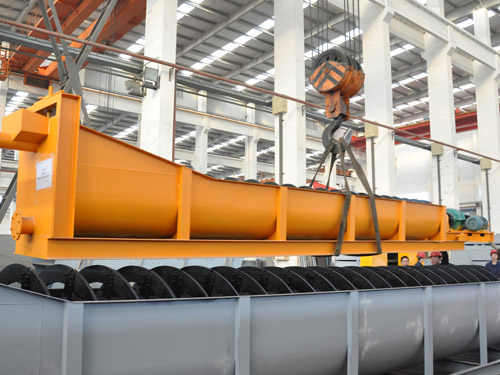

The Classiﬁer is a new type of classiﬁer independently R&D by Zhongke Machinery with simple structure, reliable work and convenient oper- ation. Widely used in mineral processing plant and ball mill with a closed-circuit cycle shunt ore or used in gravity beneﬁciation plant to clas- sify ore and ﬁne mud, or metal beneﬁciation process of the slurry for particle size classiﬁcation as well as beneﬁciation operations such as desliming, dewatering and other operations.

The machine has four types: high weir single spiral and double spiral, immersed single spiral and double spiral.

High weir type: the top of spiral blade at the overflow end is higher than the overflow surface, and the center of the spiral at the overflow end is lower than the overflow surface.

It is mainly used to classify ores with overflow size of 0.83-0.15mm.

Immersed type: The spiral blades at the overflow end are all immersed below the overflow surface. It is mainly used to classify ores with overflow size of 0.15-0.07mm.

Main Technical Parameters:

Type	Model	Screw dia. (mm)	Trough length (mm)	Rotational speed (r/min)	Capacity (t/d)		Trough angle (°)	Screw weight (t)	Power (kw)		Overall dimension (LxWxH) (mm)	Weight (kg)
Type	Model	Screw dia. (mm)	Trough length (mm)	Rotational speed (r/min)	Sand return	Over ﬂow	Trough angle (°)	Screw weight (t)	Drive	Raise	Overall dimension (LxWxH) (mm)	Weight (kg)
High-weir type	FG500	φ500	4500	8.0-12.5	135-210	32	14-18.5	0.8	1.5	-	6409 x 712 x 1599	1980
	FG750	φ750	5500	6.0-10.0	340-570	65	14-18.5	1.1	3.0	-	6300 x 1250 x 1780	3005
	FG-1000	φ1000	6500	5.0-8.0	675-1080	110	14-18.5	1.9	7.5	-	7100 x 1330 x 2390	5310
	FG-1200	φ1200	6500	5.0-8.0	1170-1870	155	14-18.5	3.7	7.5	0.4	7560 x 1572 x 2328	8000
	FG-1500	φ1500	8300	4.0-6.0	1830-2740	235	14-18.5	5.1	11.0	0.4	9740 x 2000 x 4100	9800
	FG-2000	φ2000	8400	3.0-3.5	3240-5400	400	14-18.5	7.1	11.0	2.8	10000 x 2570 x 4468	20500
	FG-2400	φ2400	9200	2.5-4.0	4650-7450	580	14-18.5	10.2	11-15.0	2.8	10800 x 2980 x 4700	25700
	2FG-1200	φ1200	6500	5.0-8.0	2340-3740	310	14-18.5	2 x 3.7	2 x 5.5	2 x 0.4	8060 x 3400 x 3100	13300
	2FG-1500	φ1500	8300	4.0-6.0	3660-5480	470	14-18.5	2 x 5.1	2 x 7.5	2 x 0.4	9740 x 3630 x 4050	22100
	2FG-2000	φ2000	8400	3.0-5.5	6480-10800	800	14-18.5	2 x 7.1	2 x 11.0	2 x 2.8	10000 x 4600 x 4470	36500
	2FG-2400	φ2400	9200	2.5-4.0	9300-14900	1160	14-18.5	2 x 10.2	2 x 15.0	2 x 2.8	10800 x 5400 x 4700	45800
	2FG-3000	φ3000	12500	2.0-3.2	14600-23400	1785	14-18.5	2 x 20.0	2 x 18.5	2 x 4.0	15600 x 6640 x 6350	73000
Imeersed type	FC-1000	φ1000	7600	5.0-8.0	675-1080	85	14-18.5	2.4	7.5	0.4	10000 x 1680 x 4000	6000
	FC-1200	φ1200	8400	5.0-8.0	1170-1870	120	14-18.5	4.8	7.5	0.4	10000 x 1880 x 4190	9280
	FC-1500	φ1500	10500	4.0-6.0	1830-2740	185	14-18.5	6.4	11.0	0.8	12200 x 2100 x 4900	12570
	FC-2000	φ2000	12900	3.0-3.5	3240-5940	320	14-18.5	8.6	11-15.0	2.8	14500 x 2880 x 5500	29100
	FC-2400	φ2400	14200	2.5-4.0	4650-7450	455	14-18.5	12.8	11-18.5	4.0	15900 x 3300 x 6000	41000
	2FC-1200	φ1200	8400	5.0-8.0	2340-3740	240	14-18.5	2 x 4.8	2 x 7.5	2 x 0.4	10000 x 3700 x 4190	19600
	2FC-1500	φ1500	10500	4.0-6.0	3660-5480	370	14-18.5	2 x 6.4	2 x 7.5	2 x 0.8	12200 x 3840 x 4850	30700
	2FC-2000	φ2000	12900	3.0-5.5	6480-11800	640	14-18.5	2 x 8.6	2 x 15.0	2 x 2.8	14500 x 4910 x 5500	50000
	2FC-2400	φ2400	14200	2.5-4.0	9300-14900	910	14-18.5	2 x 12.8	2 x 18.5	2 x 4.0	15900 x 5730 x 6000	67900
	2FC-3000	φ3000	14300	2.0-3.2	14600-23400	1410	14-18.5	2 x 24.1	2 x 22.0	2 x 4.0	17700 x 7000 x 8000	84900

Note : A ny change of technical data shall not be advised additional.
