The cement mill is mainly used in grinding the raw materials and end products in cement plant. It is also suitable for various ores and other materials metallurgy, mine, chemical and construction. Besides, it has two forms of milling, one is an open form, and another is a recycle close form equipped with powder concentrator. It is widely applied in many industries and has simple operation.

Working principle of Cement Mill:

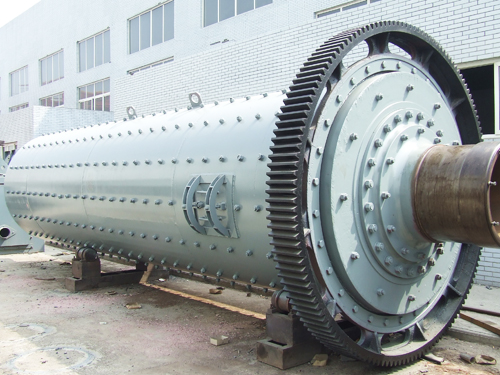

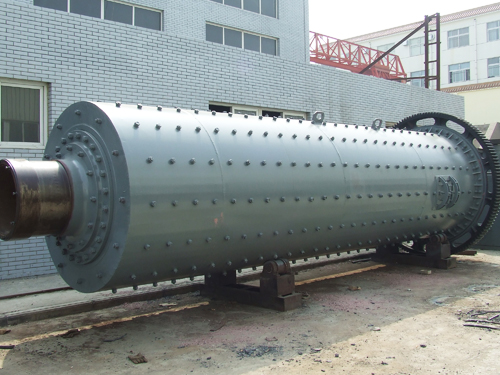

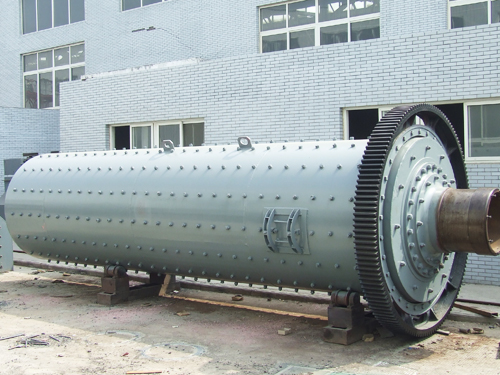

The cement mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grindng chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the material. The ground materials are discharged through the discharging board thus the grinding process is finished.

Features of Cement Mill:

It has many advantages such as, strong adaptability, continuous production, large crushing ratio, easy to adjust the size of the products. And it is suitable for both dry production and wet production, also can allow the milling and drying processing simultaneously.
