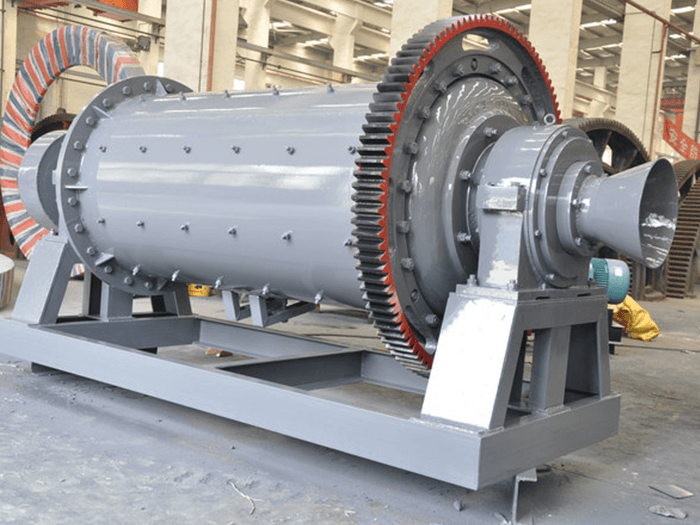

Different types of Ball Mill for Iron Ore Processing

Iron ore beneficiation is a critical step in steel production, and ball mills play a pivotal role in grinding and liberating valuable minerals from low-grade ores. Selecting the right ball mill system can significantly impact efficiency, energy consumption, and overall processing costs. This article explores the different types of ball mills used in iron ore processing, their advantages, and how they optimize mineral beneficiation.

Why Ball Mills Are Essential in Iron Ore Processing

Ball mills are grinding machines that reduce iron ore particles to the optimal size for downstream separation processes (e.g., magnetic separation, flotation). Their key functions include:

  • Particle size reduction – Ensuring ore is finely ground for maximum mineral liberation.

  • Energy efficiency – Different mill designs impact power consumption.

  • Throughput optimization – Matching mill type to ore hardness and processing capacity.


Types of Ball Mills in Iron Ore Beneficiation

Specialized Ball Mill Types in Iron Ore Processing

1. Energy-Saving Ball Mill

Description:
A high-efficiency grinding system with improved liner design and drive mechanisms to reduce power consumption. Often features frequency conversion speed control.

Best for:

  • Large-scale iron ore processing plants

  • Operations prioritizing reduced OPEX

  • Magnetite/hematite circuits requiring<75µm grinding

Advantages:

  • 20-30% lower energy use vs conventional mills

  • Optimized grinding media motion reduces overgrinding

  • Longer service life with wear-resistant composite liners


2. Raw Material Ball Mill

Description:
Heavy-duty mill designed for primary grinding of unprocessed run-of-mine (ROM) iron ore. Features reinforced construction to handle abrasive feed.

Best for:

  • Initial size reduction of ROM ore (300mm → 2-5mm)

  • Dry grinding applications in sinter feed preparation

  • Integrated mining-to-processing facilities

Advantages:

  • Handles high-moisture & variable feed sizes

  • Dual-compartment design for coarse-to-fine grinding

  • 30% higher throughput than standard mills for raw ore


3. Intermittent Ball Mill (Batch Mill)

Description:
Compact, non-continuous operation mill ideal for pilot plants or specialty concentrates. Uses ceramic liners for purity-sensitive applications.

Best for:

  • Laboratory/pilot-scale test grinding

  • Small-volume high-grade concentrate production

  • Processing of rare earth-bearing iron ores

Advantages:

  • Precise grind size control (±5µm variance)

  • Zero cross-contamination between batches

  • Low capital cost for small operations


Comparative Summary

TypeEnergy EfficiencyTypical Feed SizeOutput Fineness
Energy-Saving★★★★★25mm45-150µm
Raw Material★★★☆☆300mm2mm-5mm
Intermittent★★☆☆☆10mm10-100µm

Technical Note: Energy-saving models achieve efficiency through:
✔ Hydrodynamic bearings reducing friction
✔ Optimized ball size distribution
✔ Variable frequency drive (VFD) motor control

Key Factors Affecting Ball Mill Performance in Iron Ore Processing

  1. Ore Characteristics

    • Hardness (Bond Work Index)

    • Abrasiveness (affects liner/grinding media wear)

    • Feed size (optimal F80 for efficient grinding)

  2. Operational Parameters

    • Mill speed (critical speed % for optimal cascading)

    • Ball charge & size distribution (affects grinding efficiency)

    • Pulp density (affects slurry flow and grinding kinetics)

  3. Downstream Process Requirements

    • Target grind size for magnetic separation (typically 80%<75 µm).

    • Finer grinding needed for flotation (P80<45 µm).


    • Innovations Improving Ball Mill Efficiency

    • Wear-Resistant Liners (rubber, composite metals) → Longer service life.

    • Advanced Control Systems (AI, IoT) → Real-time optimization of mill load & speed.

    • High-Efficiency Classifiers (hydrocyclones, screens) → Reduced overgrinding.

    • Case Study: Ball Mill Optimization in a Magnetite Plant

    • Challenge: High energy consumption (22 kWh/t) in primary grinding.

    • Solution: Switched to  pre-crushing + ball mill circuit.

    • Result:

      • Energy savings: 25%

      • Throughput increase: 15%

    • Future Trends in Iron Ore Ball Milling

    • Green milling technologies (renewable energy-powered mills).

    • Nano-grinding for ultra-high-grade concentrates.

      Smart mills with predictive maintenance.

    • Application of Ball Mill in Iron Ore Mineral Beneficiation Process

    • Ball mills are indispensable in the iron ore beneficiation process, serving as the primary equipment for grinding crushed ore into fine particles. This step is crucial for liberating valuable iron minerals from gangue materials, ensuring optimal efficiency in downstream separation processes such as magnetic separation, flotation, and gravity concentration.

    • This article explores the key applications of ball mills in iron ore processing, their operational principles, and advancements that enhance efficiency and sustainability.

    • Role of Ball Mills in Iron Ore Beneficiation

    • Ball mills perform size reduction and mineral liberation, enabling effective separation of iron oxides (hematite, magnetite) from silica, alumina, and other impurities. Their functions include:

    • Coarse grinding (100–300 µm) for initial liberation.

    • Fine grinding (<75 µm) for improved recovery in flotation/magnetic separation.

    • Regrinding of concentrates to maximize grade.
