After the ball mill is in normal operation, it is necessary to strictly follow the regulations of water supply, ore supply and addition of steel balls. Overload operation is prohibited, and the idling time should not exceed 15 minutes to avoid damaging the lining. During operation, pay attention to check whether the cylinder is leaking slurry, carefully observe whether the current, voltage, feed and water are normal, check the temperature of the motor and the main shaft every half an hour is not greater than 60°С, and deal with the problem in time.
Intermittent Ball Mill - The Ultimate Solution for Your Grinding Needs
As a leading manufacturer located in China, we are proud to present you with our latest product - the Intermittent Ball Mill. This innovative piece of equipment is designed to help you achieve high-quality grinding results with ease, making it an ideal choice for those looking to optimize their grinding operations.
What is the Intermittent Ball Mill?
The Intermittent Ball Mill is a type of grinding equipment that operates with a horizontal cylindrical shell which rotates on its axis. The shell is filled with grinding media - such as balls or rods - which are used to grind the material to the desired size. The ball mill operates intermittently, which means that after a certain period of time, the mill will stop grinding and the material will be discharged from the milling chamber. This intermittent grinding process helps to maintain a consistent particle size distribution, ensuring that you achieve the desired results every time.
Benefits of using the Intermittent Ball Mill
The Intermittent Ball Mill has several benefits that make it an excellent choice for businesses looking to optimize their grinding operations. These include:
1. High grinding efficiency - the Intermittent Ball Mill is designed with high-quality grinding media, which helps to achieve a higher grinding efficiency compared to other types of grinding equipment.
2. Reduced power consumption - with an innovative design that incorporates a rotating cylindrical shell, the Intermittent Ball Mill consumes less power than other grinding equipment. This helps to reduce your operational costs while improving your overall grinding efficiency.
3. Low noise - our Intermittent Ball Mill is designed to operate with minimal noise, making it an ideal choice for businesses that operate in residential or noise-sensitive areas.
4. Easy to operate and maintain - the Intermittent Ball Mill is designed for ease of operation and maintenance, with a simple and intuitive control panel that allows for quick and easy adjustments.
5. Wide range of applications - the Intermittent Ball Mill can be used to grind a wide range of materials, from minerals to chemicals, making it an ideal choice for businesses in a variety of industries.
How to use the Intermittent Ball Mill
Using the Intermittent Ball Mill is simple and straightforward. Here are the steps you need to follow to get started:
1. Load the mill with the desired grinding media, ensuring that it is evenly distributed throughout the milling chamber.
2. Add the material to be ground to the milling chamber, ensuring that it is evenly distributed throughout the grinding media.
3. Begin the grinding process, allowing the mill to rotate for a predetermined period of time.
4. After the grinding period is complete, stop the mill and discharge the material from the milling chamber.
5. Clean the milling chamber and grinding media, ensuring that they are free from debris and contaminants.
6. Repeat the grinding process as necessary until the desired particle size distribution is achieved.
Conclusion
The Intermittent Ball Mill is an innovative and efficient piece of equipment designed to help businesses achieve high-quality grinding results with ease. With its high grinding efficiency, reduced power consumption, low noise, and easy operation and maintenance, it is an ideal choice for businesses in a variety of industries. So why wait? Contact us today to learn more about how the Intermittent Ball Mill can help take your grinding operations to the next level!

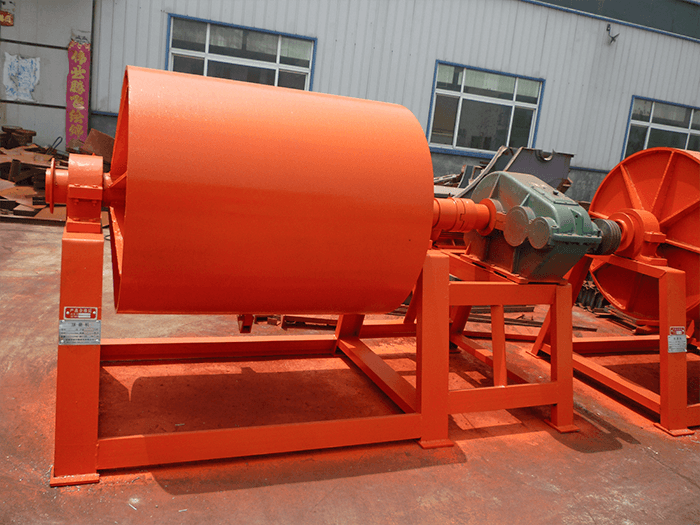

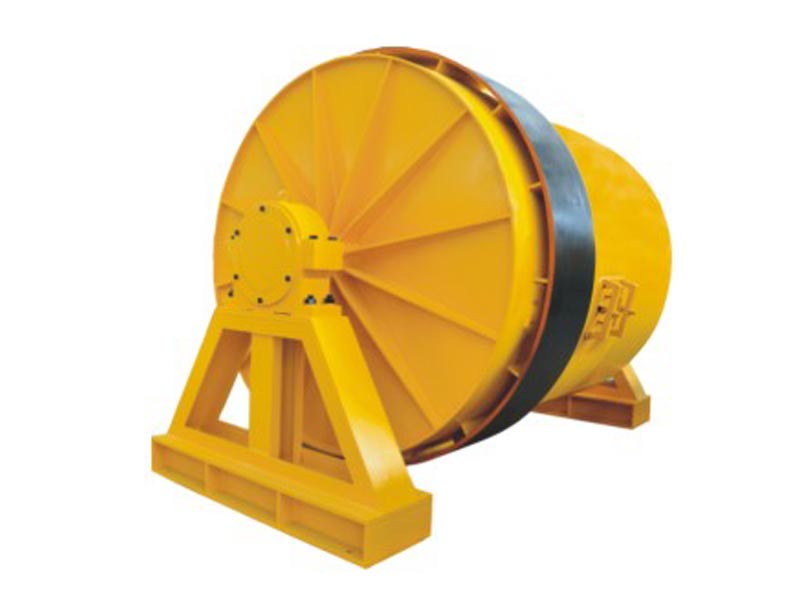

Intermittent Ball Mill
The barrel of the intermittent ball mill is inlayed with ceramic, rubber and silica lining plate, and it has many benefits of even products size, energy conservation and saving electricity. Besides, it is suitable for both wet grinding and dry grinding, and can self-control the size depending on the grinding time. Moreover, it is mainly suitable for mixing and grinding of the general and special materials. And the user can choose an appropriate model, linear plate and medium type, according to the specific density and the hardness of the materials, even the productivity or other actual situations.
Features
Energy conservation
1. Saving energy
2. It is suitable for both wet grinding and dry grinding.
Working Principle
Intermittent ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Main Technical Parameters
Model | Loading weight
(ton/time) | Rotate speed
(r/min) | Power (kw) | Liner material |
900×1200 | 0.2 | 38.5 | 5.5 | Ceramics, silica, rubber and metal
(the liner material and grinding
materials determine the power) |
1300×1500 | 0.5 | 33 | 7.5 |
1500×1800 | 1.2 | 28.5 | 11 |
1800×2000 | 1.5 | 24 | 15 |
2600×2800 | 5 | 16.5 | 37 |
3000×3800 | 10 | 14.5 | 55 |
3200×4600 | 15 | 13.5 | 75 |
3400×6600 | 18 | 13 | 135 |
Introduction
Besides, it is suitable for both wet grinding and dry grinding, and can self-control the size depending on the grinding time. Moreover, it is mainly suitable for mixing and grinding of the general and special materials. And the user can choose an appropriate model, linear plate and medium type, according to the specific density and the hardness of the materials, even the productivity or other actual situations.
Why Choose Us?
We are a reputable Chinese supplier and manufacturer of Benification Series products with competitive prices.
Our company will continue to practice the design marketing concept to help more consumers create "what you see is what you get" Intermittent Ball Mill products.
Our skilled workers produce high-quality Benification Series products with precision and attention to detail.
We establish the reputation of our Intermittent Ball Mill through the link of selling products, and maintain the quality advantage of human resources is the key to enhance the vitality and competitiveness of enterprises.
We ensure that our Benification Series products are delivered to our customers on time and in perfect condition.
We keep on with our business spirit of 'Quality, Performance, Innovation and Integrity'.
Our team is committed to providing fast and efficient delivery of Benification Series products to our customers.
In pursuit of low price, high efficiency and fast speed, we pay more attention to quality assurance and strive to do every Intermittent Ball Mill well for customers.
We continuously strive to improve our Benification Series products and services to provide our customers with the best experience.
Our company constantly strengthen the construction of enterprise technology center to improve the production technology level of our company.
