Ore Processing Machine
Hammer Grinding Ball Mill
Hammer Grinding Cement Clinker Mini Ball Mill GrinderDescriptionBall mill is the key milling equipment after materials has been crushed. It is widely used in Cement, silicate, new construction mate...
Hammer Grinding Ball Mill

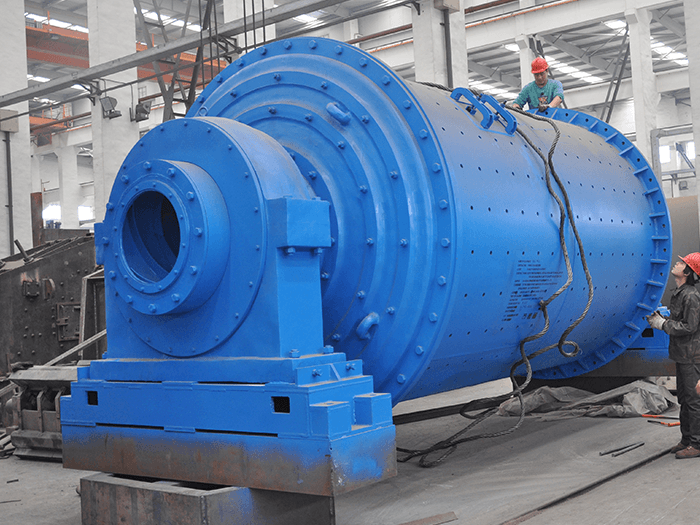

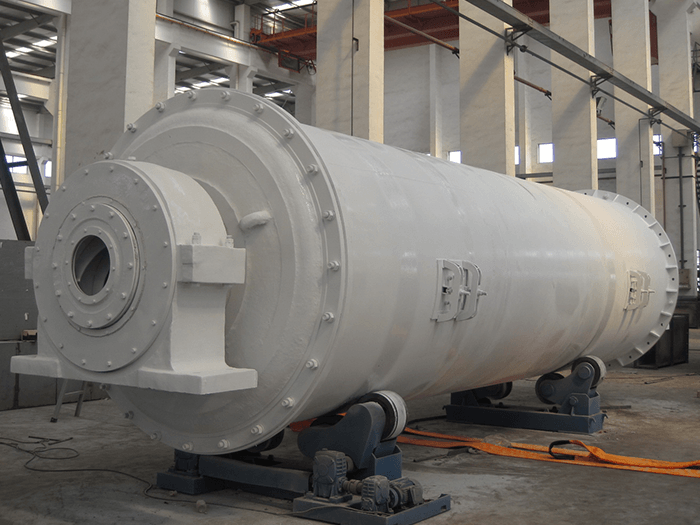

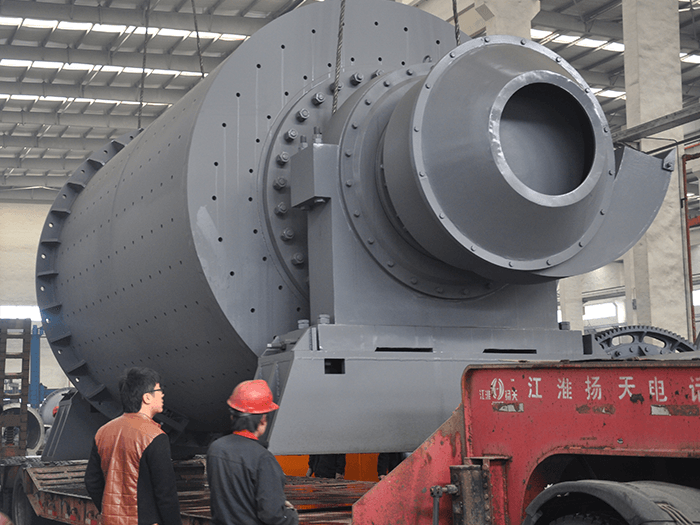

Hammer Grinding Cement Clinker Mini Ball Mill Grinder

Description

Ball mill is the key milling equipment after materials has been crushed. It is widely used in Cement, silicate, new construction material, refractory material, ferrous metal and nonferrous Metal as well as ceramics. It is widely applied to grind ores in dry or wet process. Working principle: The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel.

There are two Chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the First chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates So as to generate electricity, and this force brings ball to a certain height and then balls drop Down by gravity, the impact is the grinding force to the material. After the primary grinding, Materials go into the second chamber through segregate screen. In the second chamber, there are Flat liners and steel ball, after the secondary grinding, material is discharged from the Discharging. Then finished.



Name:Ball Mill GrinderPrice:Negotiation
Color:As Customer RequiredControl System:PLC Computer
Rotation:4 To 20 Revolutions Per MinuteShell Rotation Speed(r/min):18, 21, 28, 27, 36, Etc
Ball Load(t):1.5, 11, 12, 30, 65, EtcFeeding Size(mm):<=25
Discharging Size(mm):0.074-0.4Capacity (t/h):1-90
Motor Power(kw):18.5-800Weight(t):4.6-137
High Light:

20 tph Ball Mill Grinder

Cement Ball Mill Grinder

20 tph Mini Ball Mill



Henan zhongke ball mills



Technical Parameters:



ModelShell rotation speed(r/min)Ball load(t)Feeding size(mm)Discharging size(mm)CapacityMotor power(kw)Weight(t)
(t/h)
Ø900*180036-381.5<=200.075-0.890.65-218.54.6
Ø900*3000362.7<=200.075-0.891.1-3.5225.6
Ø1200*2400363<=250.075-0.61.5-4.83012
Ø1200*3000363.5<=250.074-0.41.6-53712.8
Ø1200*450032.45<=250.074-0.41.6-5.85513.8
Ø1500*300029.77.5<=250.074-0.42-57515.6
Ø1500*45002711<=250.074-0.43-611021
Ø1500*57002812<=250.074-0.43.5-613024.7
Ø1830*300025.411<=250.074-0.44-1013028
Ø1830*450025.415<=250.074-0.44.5-1215532
Ø1830*640024.121<=250.074-0.46.5-1521034
Ø1830*700024.123<=250.074-0.47.5-1724536
Ø2100*300023.715<=250.074-0.46.5-3615534
Ø2100*450023.724<=250.074-0.48-4324542
Ø2100*700023.726<=250.074-0.48-4828050
Ø2200*450021.527<=250.074-0.49-4528048.5
Ø2200*650021.735<=250.074-0.414-2638052.8
Ø2200*700021.735<=250.074-0.415-2838054
Ø2200*750021.735<=250.074-0.415-3038056
Ø2400*30002123<=250.074-0.47-5024554
Ø2400*45002130<=250.074-0.48.5-6032065
Ø2700*400020.740<=250.074-0.412-8040094
Ø2700*450020.748<=250.074-0.412-90430102
Ø3200*45001865<=250.074-0.4-----800137



Specifications



Ball Mill
1. for cement, silicate, ceramic
2. wet or dry ball mill
3. overflow or grate ball grinder
4. ISO CERT



Ball Mill



Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.



Ball Mill Application:

are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.



Ball Mill Features:

1) is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

11)Complet ely enclosed welded design in high-grade steel.
- Direct drive via bearing journal with top-mounted gearbox.
Motor connected to gearbox via a V-belt drive.
- Product discharge via slots located around the periphery of the drum.



Ball mill Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Specifications of Ball Mill



NOTICE:ANY CHANGE OF THE TECHNICIAL DATA SHALL NOT BE ADVISED ADDITIONALY.



Energy saving ball mill is applicable for grinding all kinds of mines and other materials, widely used in mineral separation, building material and chemical industries, including dry-type ore grinding and wet-type ore grinding. According to different discharging methods, it is divided into grate ball mill and overflow ball mill.

Application:
It is a kind of key equipment for milling the materials into powders after they are crushed. It is widely used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and soon, and can make the dry and wet milling on all kinds of ores and other grindability materials .



Working principle:
It is horizontal type and cylinder rotating device, has two cabins, grate energy saving ball mil, and its outside drives along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device, In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking. After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board In the end, The powder is discharged by output material board and the end products are completed.

Features:
The ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The cylinder is wearable well and bears wearable lining board. This machine runs steadily and works reliably.
